TD-401 4-inch Desktop Barcode Printer
- High-quality Chinese main control system ： It adopts a new high-quality Chinese MCU main control system and equipped with a large-capacity external flash memory chip to effectively solve the problems of printing jams and incomplete content.
- Memory function, automatic reprinting of breakpoints: When an error occurs during continuous printing, the error label can be automatically reprinted after printing is resumed to ensure continuous printing and no order loss.
- High-speed and high-quality printing: 152mm/s high-speed printing, 60 labels per minute, double efficiency!
- Multiple precision sensor technology, accurate positioning: Ensuring zero error for each label. Support first label return, automatic printing after paper replenishment, uninterrupted printing.
- Supports both wireless connections: Making the printing device connection more free, dual-mode design, seamless switching.
- Supports connecting multiple devices: WiFi connection supports 32 devices, supports 1 Android and 1 Apple at the same time, easily distribute printing tasks.
- Imported durable print head: Supporting long-term continuous printing, it’s stable, reliable and more durable！
- Supports multi-language printing: Simplified/Traditional Chinese, English, Japanese, Korean, Arabic and multiple languages to meet diverse printing needs.
Classification:
Service Hotline:
Details Introduction
Functional Specification
Download
Desktop
System Integration
Barcode Printing

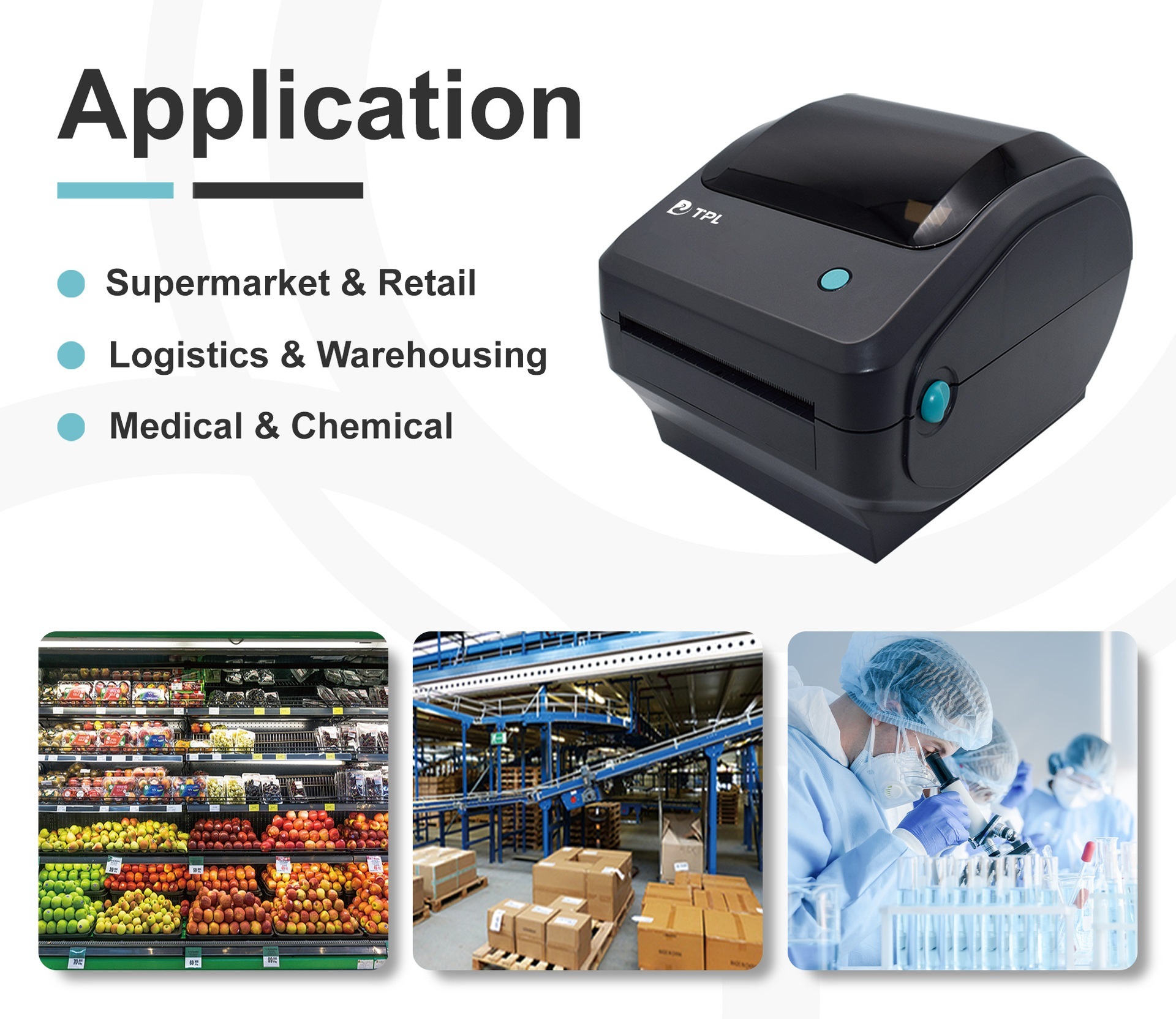

Product Application
Warehouse Logistics
Medical Identification
File Identification
Storage Classification
| Model | 4-inch Desktop Barcode Printer TD-401 |
| Resolution | 203DPI |
| Printing Method | Thermal Line Printing |
| Communication Interface | USB/ Ethernet/ Mobile phone connection/ WiFi |
| Instruction Set | TSPL, ZPL, CPCL, DPL, EPL |
| Sensor | Gap sensor / Lid sensor / Black mark sensor |
| Printing Speed | 152mm/s（max） |
| Printing Width | 108mm（max） |
| Printing Length | 1778mm（max） |
| Memory | SDRAM 8MB |
| Flash Memory | FLASH 8MB (expandable) |
| Driver Supported System Version | Windows: Windows 7/10/11 (32 bit/64 bit) |
| MacOS: 10.9/10.10/10.11/10.12/10.13/10.14/10.15/11.6/12.1/12.2/12.3/12.4/14.4/14.6 | |
| Linux Ubuntu: 18.04/20.04/22.04/24.04 | |
| Astra Linux Special Edition V1.6 | |
| APP Supported System Version | Android 6.0 and above |
| iOS 11 and above | |
| Barcode Format | Code128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CodeBar, Postnet, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, MSI, MSIC, PLESSEY, CPOST, ITF14, EAN14, Code11 |
| Two-dimensional Code Format | QR code, PDF417, Micro PDF 417, DataMatrix, AZTEC |
| Character Zoom/Rotation | 1-10x zoom / 0°, 90°, 180°, 270° rotation / Mirror printing |
| Character Set | Simplified Chinese, Traditional Chinese, English |
| Extended Character Table | PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151, PC747, WPC1257 and 61 other languages |
| Character Size | Alphanumeric 9x17dot, Alphanumeric 12x24dot, Chinese 24x24dot |
| Consumable Type | Gap label, Continuous label, Black mark label, Folding label |
| Consumable Width (including liner) | 30~114mm |
| Consumable Thickness (including liner) | 0.12~0.26mm |
| Consumable Core | 1 inch (25.4mm) |
| Consumable Outer Diameter | 120mm (OD) |
| Paper Output Method | Front Paper Output |

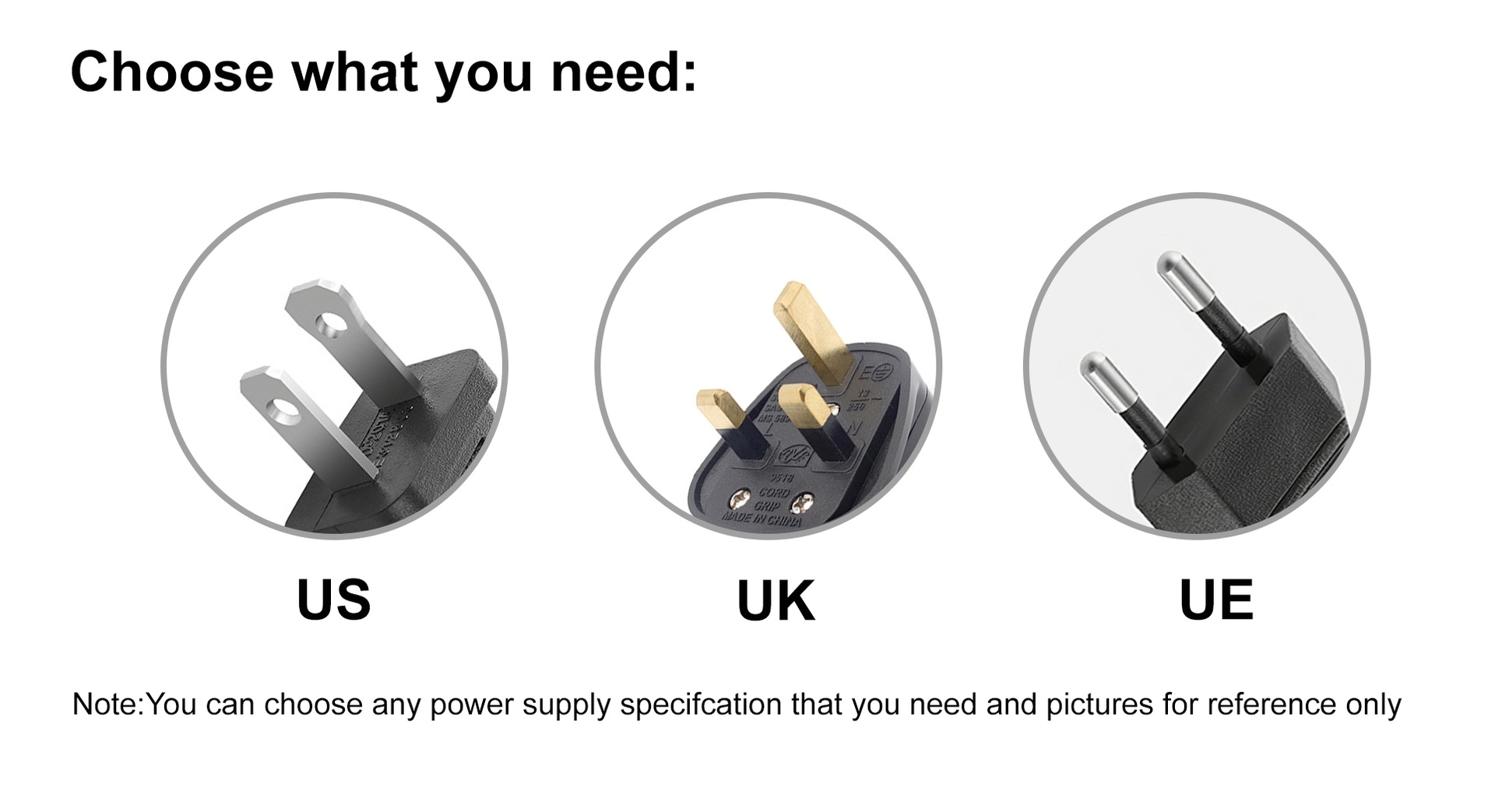

| Power Specification | Input: 100-240V 50/60Hz Output: 24V-2.5A |
| Operating Environment | Temperature: 5~40℃, Humidity (non-condensing): 25~85% |
| Storage Environment | Temperature: -10~60℃, Humidity (non-condensing): 10~90% |
| Print Head Lifespan | 150km (print rate 18.5%) |
| Product Size | Length (210)*Width (168.5)*Height (152.5) mm |
| Weight | 1.2KG |

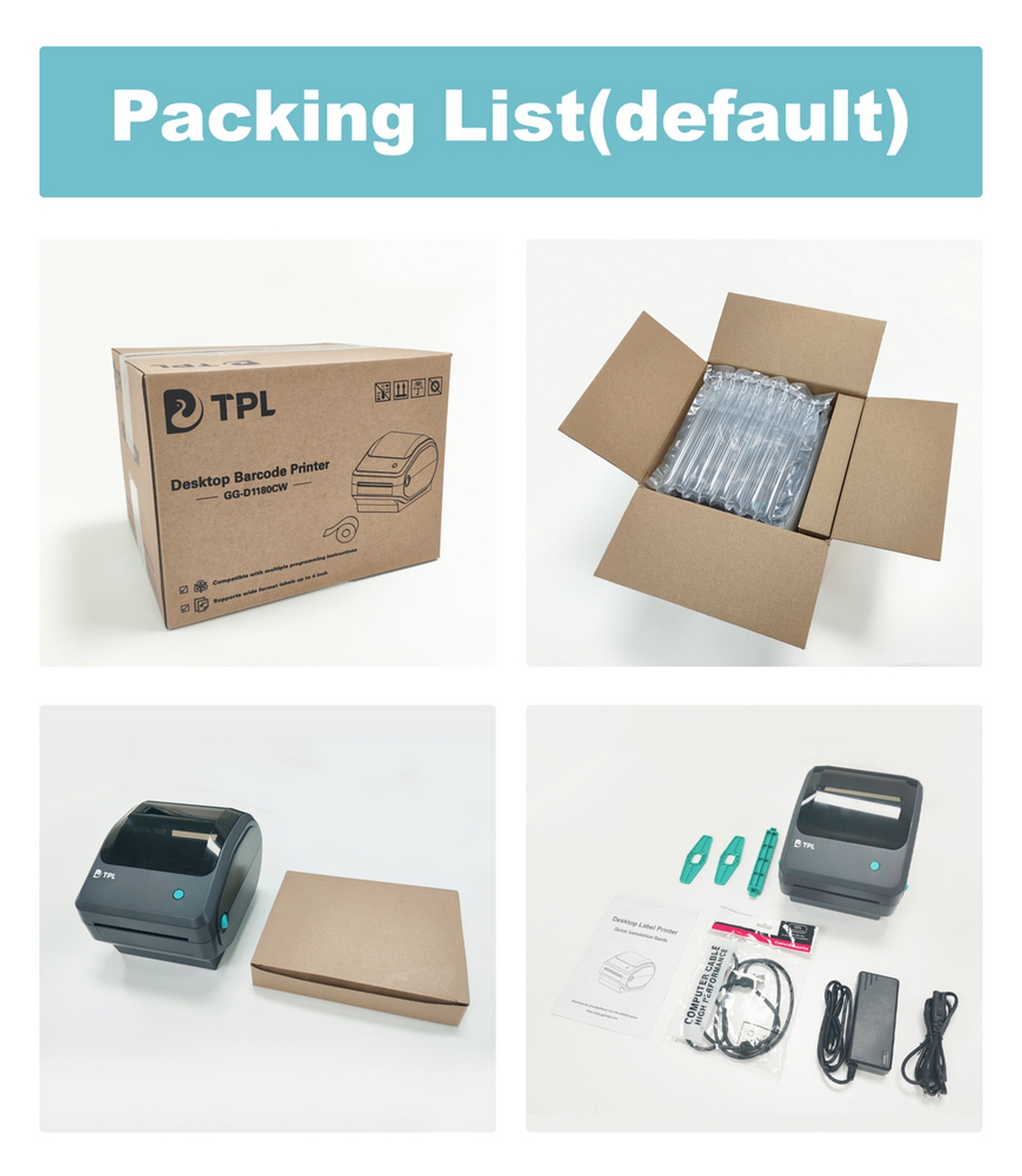

| Accessories (Standard) | 1. Power adapter 2. Power cord 3. USB cable 4. Quick installation guide 5. Paper roll, paper roll baffle *2 6. Consumable roll *1 |
| Product Certification | CCC, CE, ROHS, REACH, TELEC (Japan), EAC (Russia), FAC (Russia), SRRC, BIS (India) |

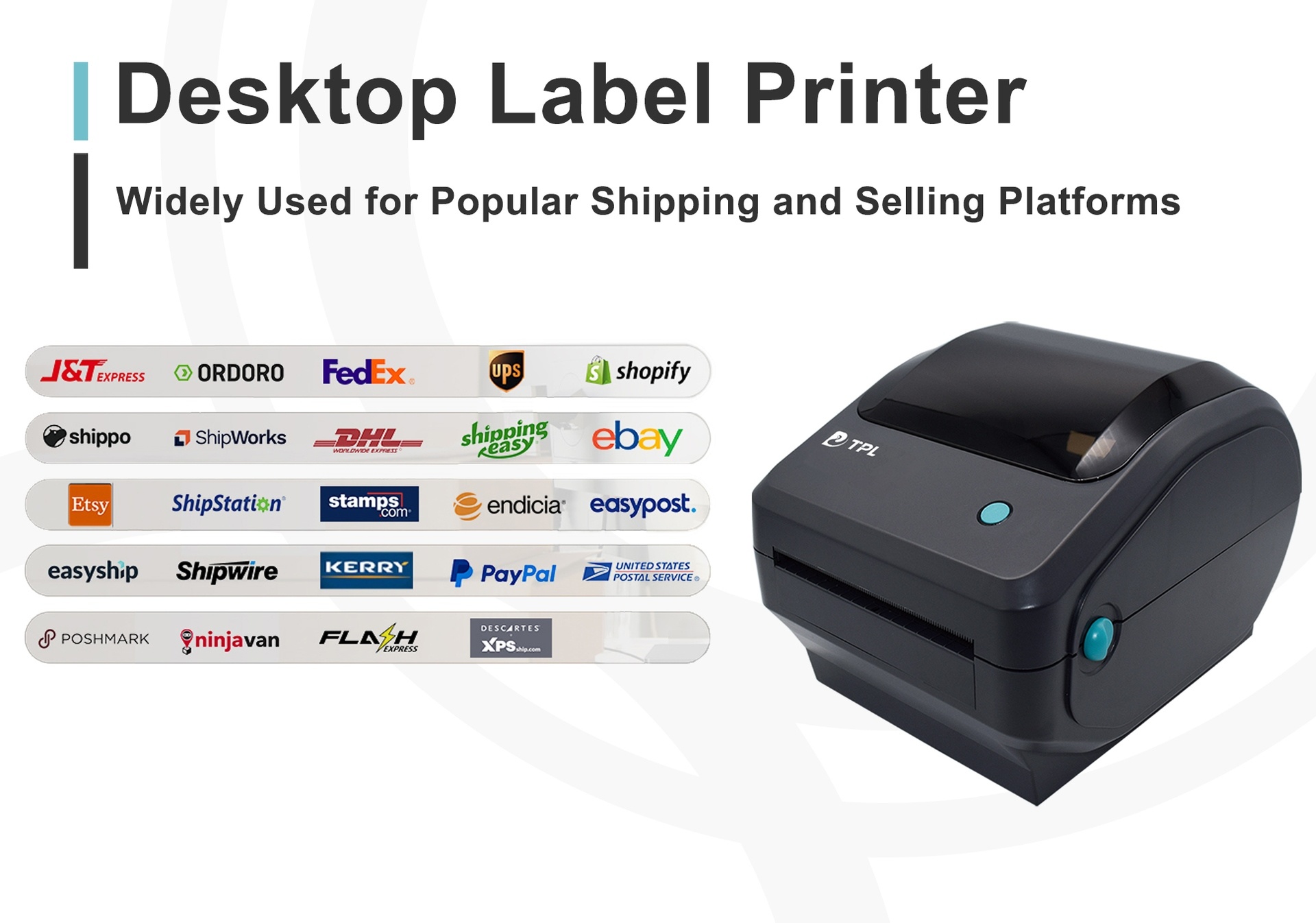

| Compatible Platform/ System | UPS、DHL、Shopify、Royal Mail、Amazon、odoo，etc. |
